Helice Machines

BUY YOUR HELICE MACHINE
FROM SHOTGUN SHOOTING SPORTS INC.

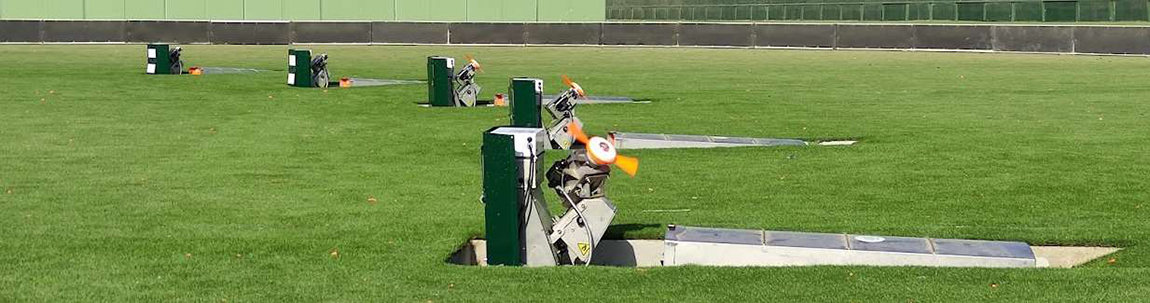

Range Elimatic 45 12V

Portable helices launcher machines with automatic recharge

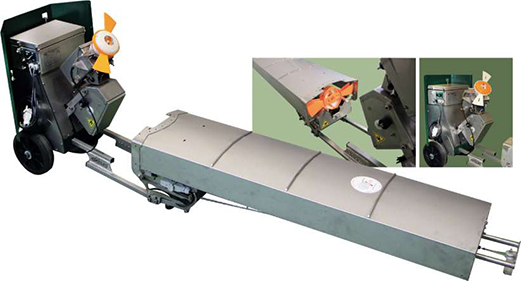

ELIMATIC 45 12V

  • • Capacity for 50 helices. Launches any type of approved helice.
  • • Power supply 12V DC- 350W Max., with feeder 115/230 VAC.
  • • Fully portable, easy assembly in the field.
  • • Detachable in two parts without tool.
  • • Allows to be installed, eventually, on the ground level.
  • • Recharge time 7sec.
  • • Optical sensor that detects a faulty load and recharges again.
  • • It can works as an automatic ball trap machine.
  • • Individual or collective speed control
  • • Vertical launch angle, easily adjustable between 30º and 45º
  • • Vertical release angle, easily adjustable between 30º and 45º
  • • Horizontal Launch Angle 90º (72º optional for machines installed in pigeon fields in 1st and 2nd position). Easily adjustable without changing machine position

ELIMATIC 45 12V

With programmable shooting delay thanks to its trigger system with actuator via electromagnet thus complying with the requirements under the FITASC regulation from 2020.

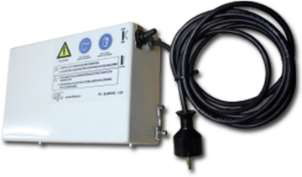

FA-ELIMATIC-12V

  • • 12V external power supply for ELIMATIC machines
  • • Input: 110/220V
  • • Output: 12V/350W

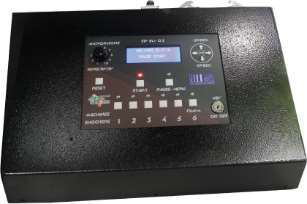

CONTROL UNIT EP-ELI-02

  • • Internal speed control for ELIMATIC machines
  • • Up to 8 microphones
  • • Connection for coin reader and chip card system
  • • Control interface for external referee
  • • Connection interface for via radio system
  • • Industrials plugs
  • • Active microphone signal (LED lamps).
  • • Power supply 110VAC 240VAC
  • • Supported frequency: 47Hz 63Hz
  • • Maximum consumption: 40W
  • • Output: 12V DC 2 Amp
  • • Supported temperature: -5°C to + 55°C
  • • Internal protection: 1 A fuse at the input
  • • Automatic protection at 12VDC output
  • • Lightning protection: varistors, transil.
  • • Dimensions: 390 x 260 x 135 mm. Weight: 4 kgs.

Specially designed and developed for the disciplines of HELICES and PIGEON

Disciplines
Set of 5 machines (extendable up to 9 machines) and pigeon (up to 15 cages).

Includes signal and microphone wiring harnesses. Microphone with stand and microphone to avoid interferences and ambient noise

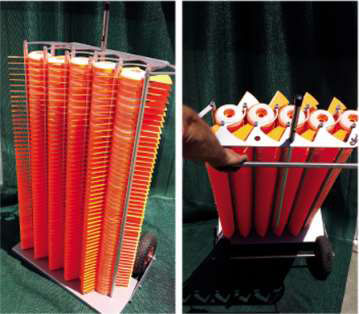

CR-ELI-250

Transport trolley for recharging. Capacity for 250 helices

  • • Allows recharging in a few minutes
  • • Made entirely of stainless Steel
  • • Very light and with anti-puncture wheels

BR-ELI-30

Load bar. Capacity for 30 helices. For quick and easy recharge

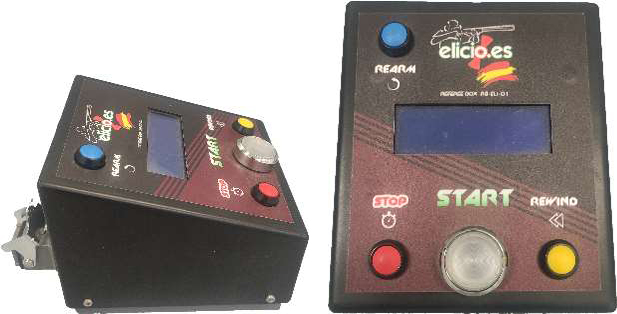

RB-ELI-01

FITASC Referee box

  • Start/Stop
  • No Bird
  • Rearm
  • Countdown

FULL SET ELIMATIC45 12V

    Incl.:
  • • 5 ELIMATIC 45 12V
  • • 5 External Power Supply
  • • 1 Control Unit EP-ELI-02
  • • 1 Signal Wiring harness
  • • 1 Microphone wiring harness
  • • 1 Microphone with stand
  • • 1 Noise microphone
  • • 1 Transport trolley (helices not included)
  • • 1 Load bar
